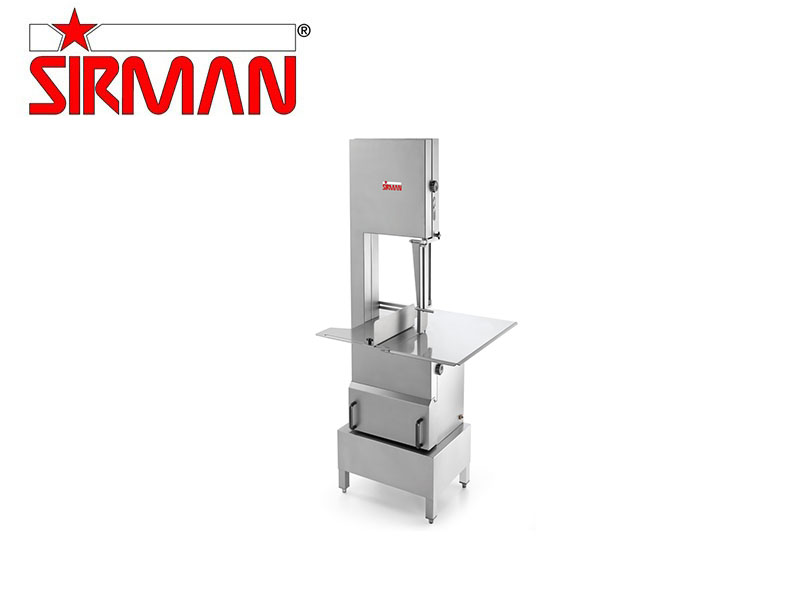

BONE SAW 380V MOTOR 2.5 HP/700 RPM

รหัสสินค้า: SIR1-SO3100 INOX TF colon

Motor 2.7Hp / 700rpm

ติดต่อเรา เพื่อสอบถามราคาสินค้า

รายละเอียดสินค้า

รีวิว

Features

AISI 304 stainless steel body.
Interlocking scrap pan accessible from the outside (not on model Start).
Easily removable door to facilitate cleaning (not on model Start).
Calibrated pulleys made of polished aluminium.
Sealed bearings on upper pulley.
Powerful asynchronous and ventilated motors protected by lip seals.
Controls (24 V) with safety micro-switch on door and pan, redundancy control unit and motor brake (CE).
Upper pulley with quick-release mechanism to facilitate cleaning and blade change.
Easily removable and replaceable scrapers.
Powerful 6- and 8-pole motors generate considerable force with limited power input (SO2400 and SO3100).
Single-phase motors with standard thermal protection.
Washable with water jet (no high pressure).
IP 67 stainless steel controls.
Equipped with 16 mm tempered blades for cutting bones, frozen foods and fresh foods.

More Informations

Specifications


Alimentary plastic blade scraper in quick to insert. Watertight black plastic flange to protect the.
	Hermetic upper pulley.

Dimension	A 444mm B 624mm C 840mm D 966mm E 950mm F 1485mm G 1900mm H 420mm L 388mm M 947mm
Motor	2.7Hp / 700rpm
Blade length	3100mm
Pulley	Dia.400mm
Working surface	795 x 830mm
Net weight	162Kg
Shipping	1050 x 950 x 2005mm
Gross weight	179Kg
Warranty	1 year
Certification
Made in	Italy
